Eurosun Power Direct 270L

unnamed
PV Direct Certifications

Latest solar hot water technology saves up to 90% on your water heating bills and delivers a silent operation system than heat pump systems.

Total of 5 years.

Key Features

TickMaximum electric efficiency: PV Direct technology is an innovation in solar technology because the energy stays in DC format from the solar panel, which minimises power loss.

TickLess maintenance required: PV Direct technology was created to eliminate the number of moving parts to fail and pumps to replace.

TickQuick & easy installation: The system installation can be done quicker and easier because it does not require plumbing on the roof.

TickElectric boosting: This system comes with an electric booster to ensure continuous hot water supply during the periods of low solar contribution or high hot water demand.

TickOptional Gas boosting: It can be installed to ensure continuous hot water supply during the periods of low solar contribution or high hot water demand.

TickNo water on the roof: It eliminates the water on the roof and is suitable for a standard fitment in frost/snow areas as there is no water on the roof to freeze.

TickCustomised solar panels: This system allows the customer to choose their solar panels in order to meet their individual needs.

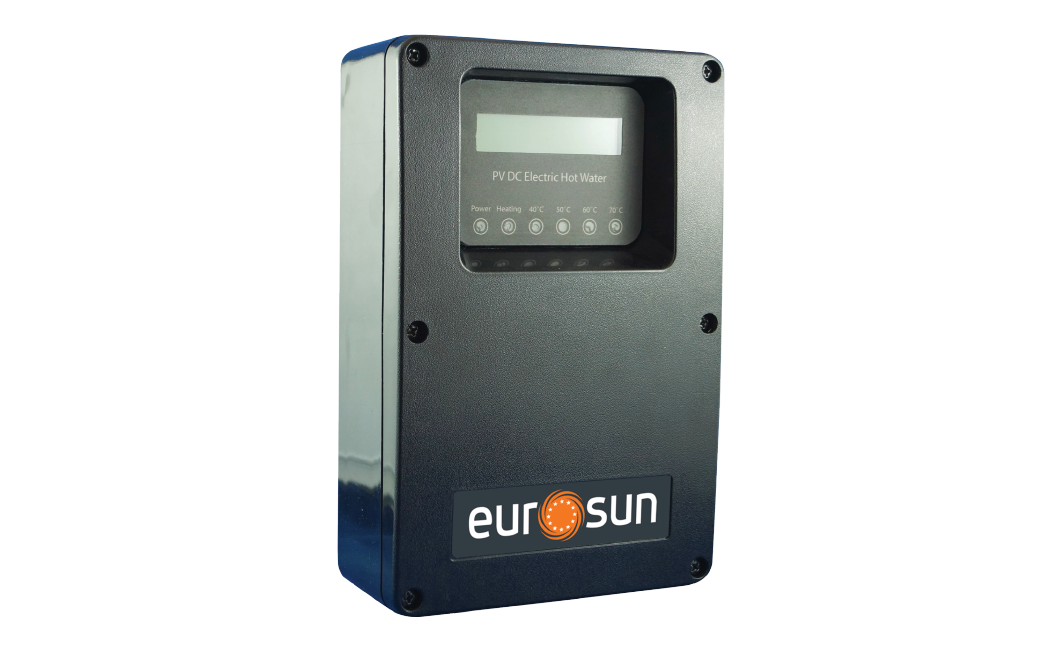

TickController has visual indicator: An LCD reader shows the amount of power generated on a daily basis & has LED tank temperature indication.

TickFlexible installation of the cylinder in terms of location to give customers more options to install this system.

TickExcellent option in off grid & rural areas due no mains required for DC heating operation and standard replacement parts with less maintenance required.

TickLong cylinder life: The cylinder has a dedicated DC electrical circuit. The water temperature within the tank is accurately controlled by simply turning off or redirecting the PV DC power when the tank has reached the required temperature, eliminating over heating of system components.

TickSilent operation: Unlike heat pumps and thermal pumped systems a PV direct system has silent operation with no noisy moving parts.

Titanium Blue

This confidential formula is acid-corrosion resistant, alkali corrosion resistant, temperature rapid change resistant, tight and hot water corrosion resistant. Other technical indicators of enamel are in line with the German DIN4753-3 standards.

360

Extremely thick and high intensity thermal protection performance.

antirust

The shell adopts high efficiency, heat galvanised plate and an outdoor painting process. It has the features of anti erosion and rust proof to help ensure prolonged service span.

Product Gallery

Technical Specifications

Controller
System Power (nom.) 1470W 2220W 2960W 3700W
Number of PV Panels 4 (2×2 Panels) 6 (2×3 Panels) 8 (2×4 Panels) 10 (2×5 Panels)
Height 220mm
Width 145mm
Electric or Gas Boost Option
Electric Boost 2.4kW
Gas Boost 17 L/h instant 21 L/h instant 26 L/h instant 32 L/h instant

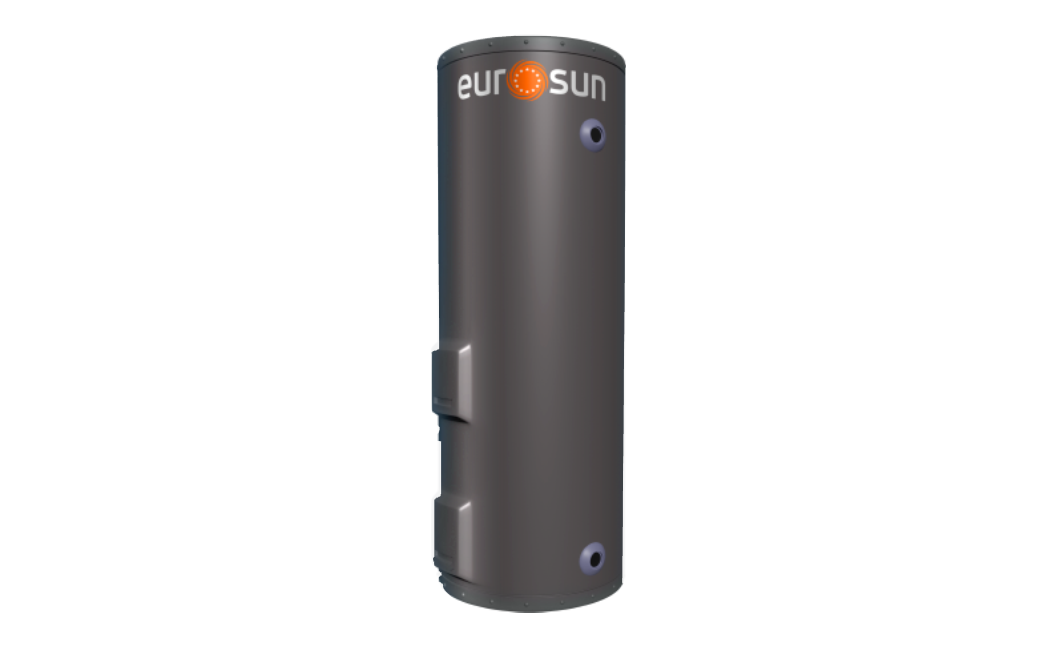

Cylinder
Diameter 652mm Rated Delivery 250L
Overall Height 1470mm Boost Capacity 130L
Inlet Height 105mm PTR (Hot Relief) 850 kPa
Outlet Height 1220mm ECV (Cold Relief) 700 kPa
Storage Capacity 270L Max Supply Temp 70°C

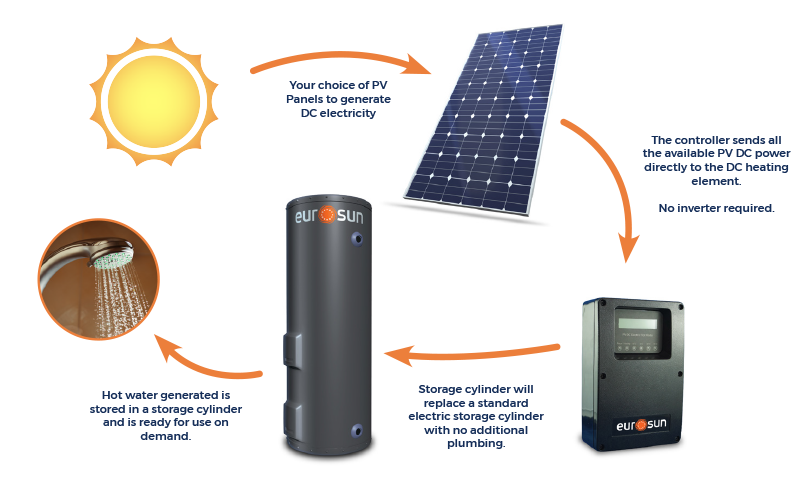

Our latest solar hot water system technology comes with an innovative, no water on the roof & silent operational design. It requires less maintenance & easy installation because there are no pumps to replace and no plumbing on the roof. It can be customised with your choice of PV solar panels to maximise the potential savings from the sun.

The water temperature within the tank is accurately controlled by simply turning off or redirecting the PV DC power when the tank has reached the required temperature, eliminating over heating of system components. Additionally, the PV direct system’s controller offers the benefits of DIY visual checks on the cylinder’s temperature and solar energy generated per day and total. Finally, this system is designed to provide economical service from medium to high solar gain areas and is suitable for a family size of 2 to 5.

power direct

Download the flyer

Warranty

Eurosun saves your time: All warranties activated online for you.

All products come with the manufacturer warranty, which covers manufacturer parts and components repairs subject to terms of the warranty.

The product manual with warranty is handed to our customers once the installation is completed.

The Eurosun PV Direct 270L comes with:

TickTank warranty: Total of 6 years.

TickControl warranty: Total of 3 years.

Tank warranty:

Tank 6 Year Warranty

Total of 6 years.

Control warranty:

Control 3 Year Warranty

Total of 3 years.

Certifications

Eurosun PV Direct systems has the following certifications listed below:

Australian certifications:

WMKA21712

International certifications:

sai logo
