A split hot water solar system is a clever way to harness the sun’s energy to heat water for your home. The system includes two main parts: solar collectors mounted on your roof and a storage tank located at ground level. This separation of components is what gives the split system its name. It differs from traditional thermosiphon systems, where the collector and the tank are installed together on the roof.
These systems work brilliantly in Australia’s climate, providing significant energy savings while reducing your carbon footprint and lowering energy bills. The collectors absorb solar energy, heating a fluid that circulates between the roof and tank via a circulation pump. This design offers flexibility in tank placement and reduces structural load on your roof.
Split solar hot water systems are particularly well-suited for homes where roof strength might be a concern or where aesthetics matter. You’ll find they’re adaptable to various household sizes and can be integrated with existing water heating systems as a practical backup for cloudy days.
Split Hot Water Solar System Insights:
- Split solar hot water systems separate the roof-mounted collectors from the ground-level storage tank, offering flexibility in installation and reducing roof load.
- The system uses a pump to circulate heat transfer fluid between collectors and the tank, efficiently capturing solar energy to heat your household water.
- With proper installation and maintenance, a quality split solar system can provide reliable hot water and energy savings for 15-20 years in Australian conditions.
What Is a Split Hot Water Solar System?
A split hot water solar system separates the solar collectors from the storage tank, creating a more flexible installation option for Australian homes. These systems use the sun’s energy to heat water while allowing the placement of components in different locations around your property.
Key Components of a Split System
The solar collectors are typically mounted on your roof where they receive maximum direct sunlight exposure. These collectors contain tubes or flat panels that absorb solar radiation and transfer heat to the water or heat transfer fluid moving through them.
A storage tank is installed at ground level or inside your home. This tank holds the heated water until you need it for showers, washing or other household uses.
The system includes a circulation pump that moves water or heat transfer fluid between the collectors and the storage tank. This pump is essential for proper operation since the natural thermosiphon effect cannot work in split systems.
A controller monitors temperatures and manages the pump operation to maximise efficiency. Some systems also feature a boost element for cloudy days when solar input is limited.
How Split Systems Differ from Traditional Solar Water Heaters

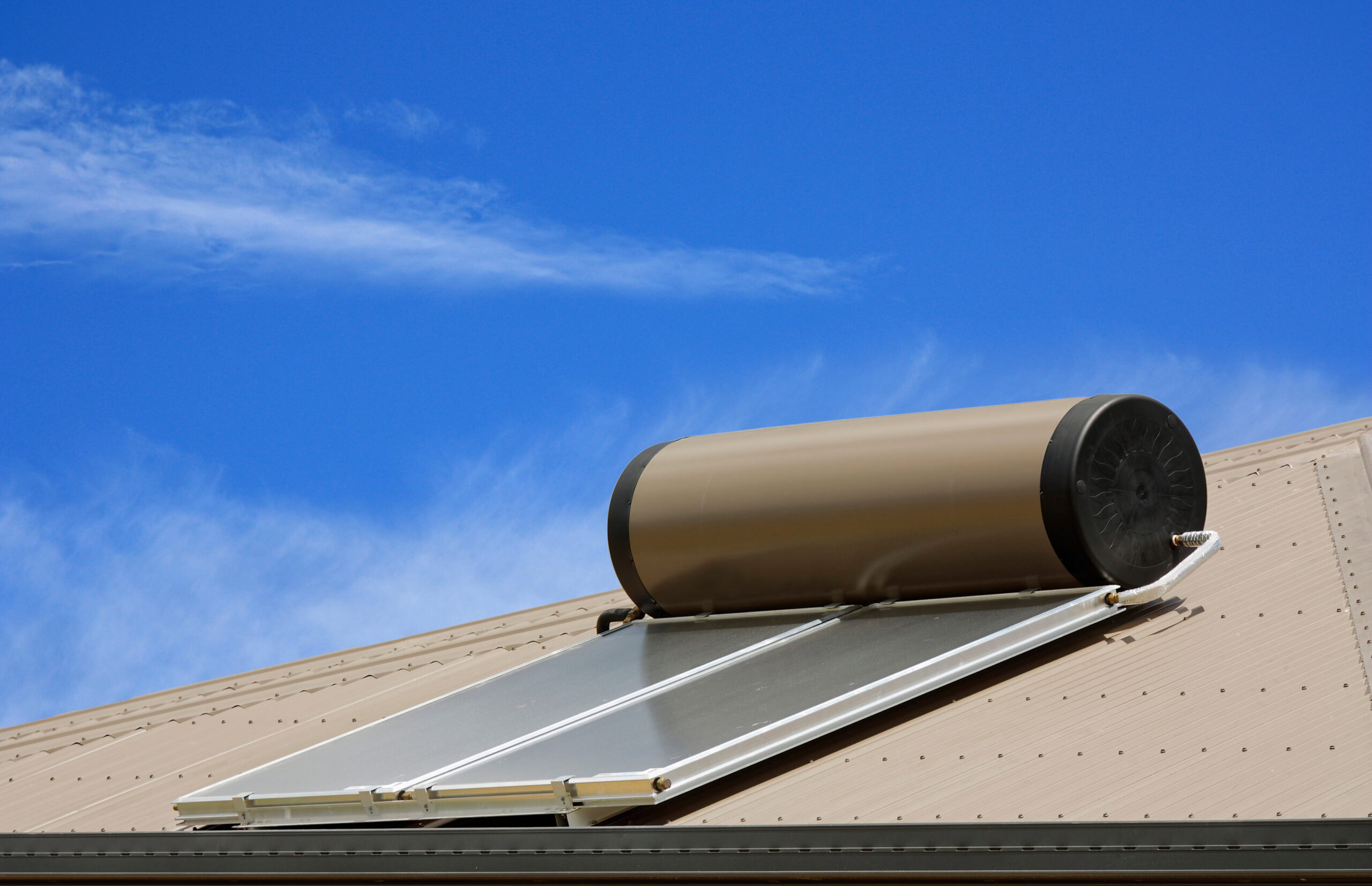

Traditional solar hot water systems, often called close-coupled or thermosiphon systems, have their storage tank and collectors mounted together on the roof. Split systems separate these components, providing several advantages.
Split systems reduce roof load significantly, as only the collectors need roof mounting. This makes them suitable for homes with limited roof strength or those in cyclone-prone areas of Australia.
You gain installation flexibility with split systems. The tank can be placed in a garage, laundry or other convenient location while collectors occupy optimal roof positions facing north.
Split systems offer better frost protection compared to traditional systems. Since the storage tank can be installed indoors, there’s less risk of freezing in colder Australian regions.
These systems typically deliver better aesthetic results as the bulky storage tank remains hidden from street view, with only the sleek collectors visible on your roof.
How a Split Hot Water Solar System Works
A split hot water solar system uses the sun’s energy to heat water through separate components that work together. This setup involves collectors on the roof capturing solar heat, a ground-level tank for water storage, and a circulation system that moves water between these components.
Working Principle and Operational Overview
Split solar hot water systems operate by separating the collector from the storage tank. The collectors sit on your roof where they receive maximum sunlight, while the tank remains at ground level. This arrangement is especially useful for homes where roof-mounting a heavy tank isn’t practical.
When sunlight hits the collectors, it heats the fluid inside. This heated fluid then travels down to transfer its heat to the water in your storage tank. The system uses either thermosiphon (natural circulation) or active pumping to move the fluid.
Unlike close-coupled systems, split systems offer more flexibility in installation locations. You can place the tank inside a garage or utility room, protecting it from weather and extending its lifespan.
The Role of the Collector and Hot Water Storage Tank
The solar collector is the workhorse of your system, typically using flat panels or evacuated tubes. Flat panel collectors contain a series of pipes running through an insulated box with a glass cover. Evacuated tube collectors use glass tubes with heat pipes inside that efficiently capture solar energy even in cooler conditions.
Your hot water storage tank acts as the thermal battery, storing the heated water until needed. These tanks are well-insulated to maintain water temperature overnight or during cloudy periods. Most feature a backup heating element that activates when solar energy is insufficient.
The tank’s design includes a heat exchanger that allows the transfer of heat from the collector fluid to your household water without mixing the two. This design prevents contamination and reduces maintenance needs.
Circulation Pump and Controller Function
The circulation pump moves the heat transfer fluid between your collector and tank. In active systems, this pump activates when the collector temperature exceeds the tank temperature by a set amount, ensuring energy is only transferred when beneficial.
Your system’s controller serves as the brain of the operation. It monitors temperatures at both the collector and tank using sensors, then decides when to activate the pump. Modern controllers often include additional features like freeze protection, overheating prevention, and timer functions.
The controller can also manage the backup heating element, activating it only when necessary to maximise solar contribution. This intelligent management ensures you’re using free solar energy whenever possible, with electricity or gas backup only as needed.
Key Features and Performance Factors
Split hot water solar systems combine several important components that work together to efficiently capture and distribute solar energy. These systems rely on quality insulation, effective pump stations, and properly sized heat exchangers to maximise performance in residential settings.
Insulation and Energy Efficiency
Proper insulation is critical to the performance of your split solar hot water system. High-quality insulation around the storage tank and piping prevents heat loss, helping to maintain water temperature overnight and during cloudy periods. Modern systems use polyurethane foam with thermal resistance values (R-values) exceeding 2.5, which can reduce heat loss by up to 80% compared to poorly insulated systems.
In Australian conditions, where summer temperatures can exceed 40°C and winter nights can be chilly, effective insulation is particularly important. Your system’s collector panels should also feature insulated backing and sides to improve energy capture efficiency.
The type of glass used in collectors matters too. Low-iron, tempered glass allows more solar radiation to reach the absorber plates while providing durability against harsh weather conditions.
Pump Station, Heat Exchanger, and System Integration
The pump station is the heart of a split solar hot water system. It circulates the heat transfer fluid between your roof-mounted collectors and the storage tank. Modern pump stations include programmable controllers that optimise operation based on temperature differentials, typically activating when the collector is 8-10°C warmer than the tank water.
Heat exchangers transfer energy from the solar-heated fluid to your household water without mixing the fluids. Plate heat exchangers offer excellent efficiency with heat transfer rates above 90%. The size and quality of your heat exchanger significantly impact system performance.
System integration requires careful balancing of components. The pump must be sized correctly for your home’s piping length and height differences.
Application in Households and Residential Settings
In Australian homes, split solar hot water systems typically provide 70-90% of annual hot water needs, depending on your location and household size. A family of four usually requires a 300-400 litre storage tank paired with 4-6m² of collector area for optimal performance.
These systems work well in both new construction and retrofits. You can connect them to existing gas or electric boosters to ensure hot water during extended cloudy periods. Most Perth households find that boosting is only needed for 25-30% of the year, primarily during winter months.
Installation considerations include roof orientation and angle. North-facing installations typically perform best, but east or west orientations can still capture 85-90% of optimal energy when properly configured. Your roof pitch matters too; ideal angles in Perth range from 25-35 degrees to maximise year-round performance.
Installation, Maintenance, and Longevity
Setting up and caring for a split hot water solar system requires attention to specific installation requirements, regular maintenance checks, and understanding how to maximise system lifespan. These factors significantly influence your system’s performance and long-term value.
Installation Process and Typical Requirements
Installing a split solar hot water system typically takes 1-2 days and requires professional expertise. The process begins with mounting solar collectors on your roof, oriented to maximise sun exposure, typically north-facing in Australia with a 20-30° tilt angle.
The storage tank is installed separately at ground level, often in a laundry or garage space. This tank needs adequate support due to its weight when full, sometimes requiring reinforced flooring.
Connecting pipes between the collectors and the tank must be properly insulated to minimise heat loss. The system also requires electrical connections for the pump and controller, which should be installed by a licensed electrician.
Plumbing modifications are necessary to integrate with your existing water supply and meet local building codes. Most installations require:
- Council approval and permits
- Compliance with Australian Standard AS/NZS 3500
- Tempering valve installation for safety
- Backflow prevention devices
Maintenance Recommendations for Split Hot Water Solar Systems
Regular maintenance extends your split solar hot water system’s life and maintains its efficiency. An annual professional inspection is recommended to check components, connections and functioning.
You should visually inspect collectors quarterly, looking for dust, leaves or bird droppings that could reduce efficiency. Simply hosing the collectors during cooler morning hours can remove most debris.
The circulation pump typically needs checking every 2-3 years. Listen for unusual noises that might indicate bearing wear or failure.
Check pipe insulation annually, especially near roof penetrations where weather exposure occurs. Damaged insulation can significantly reduce system efficiency.
The storage tank requires periodic inspection for corrosion or leaks. The sacrificial anode inside your tank should be replaced every 3-5 years to prevent internal tank corrosion.
The controller and sensors need occasional verification to ensure they’re accurately managing the system. Test buttons and display functions should work properly.
Expected Lifespan and System Longevity
A quality split hot water solar system in Australia typically lasts 15-20 years with proper maintenance. Solar collectors generally have the longest lifespan, often 20+ years, as they have no moving parts and are built to withstand harsh weather.
The storage tank usually lasts 10-15 years before replacement might be necessary. Factors affecting tank longevity include water quality, maintenance frequency, and whether the sacrificial anode has been regularly replaced.
Pumps and controllers have shorter lifespans of approximately 8-10 years. These electronic and mechanical components experience more wear but are relatively inexpensive to replace compared to the entire system.
System performance gradually decreases over time. You might notice approximately 1-2% efficiency reduction annually after the first few years. This decline is normal and doesn’t necessarily indicate a problem.
Climate conditions significantly impact longevity. In Perth, UV exposure can affect components, but our systems are designed for these conditions.
